Which power flushing pump do I have to use?

Why it is important to flush and clean heating systems?

Cleaning the heating systems solves several problems, including:

  • Corrosion: material degradation due to a chemical process that leads sludge formation, damage to equipment, metal surface corrosion.
  • Bacteria and sludge of an organic nature: they occur at traditional operating temperatures (30-40°C) and can cover the entire diameter of the pipe.
  • Encrustations and inorganic sludge



So, which power flushing pump best suits your needs?

In the Manta product range, you will find a pump suitable for every system. Let’s see them!

HYPERFLUSH 36

Power flushing pump with acid resistant motor, designed for the washing of domestic systems. It is equipped with: flow inverter, hydraulic system complete with valves, tap and overfill.

Hyperflush 36 has a motor that can be unscrewed and works up to 70°C, moreover, it is equipped with wheels for easy manoeuvrability.

This pump is ideal for systems up to 15/20 radiators maximum 3 floors.

The use of this pump reduces energy consumption and increases savings on the bill.

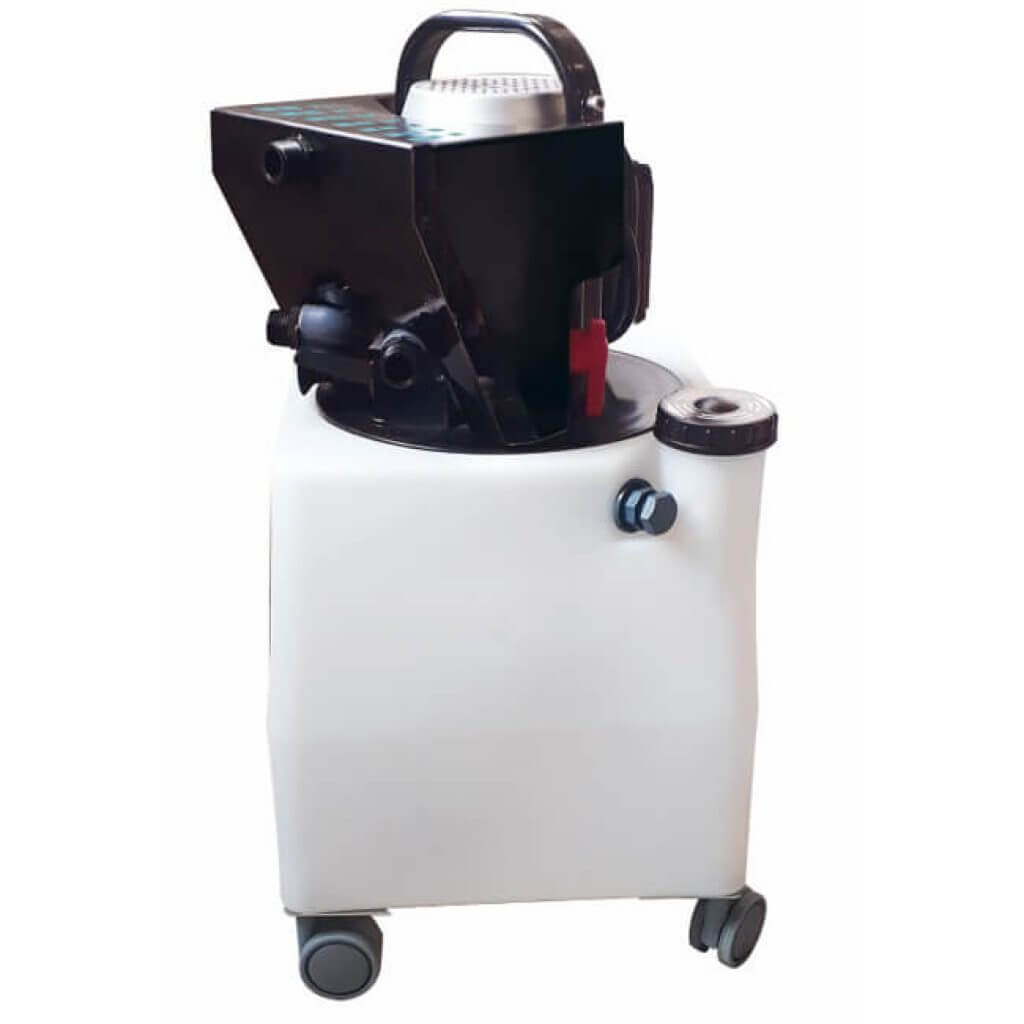

Boss hyperflush 36 FI

Technical features:
WEIGHT: 17 kg
IN/ OUT CONNECTIONS: 3/4″ F
MAX FLOW RATE: 50 L/min
OPERATING PRESSURE: 1,6 bar
TANK CAPACITY: 36 litres
MAX TEMPERATURE: 70°C
MATERIAL: PP
MOTOR: 230 vac/50 Hz /0,373 kW
DIMENSIONS: H: 630mm L: 350mm D: 350mm

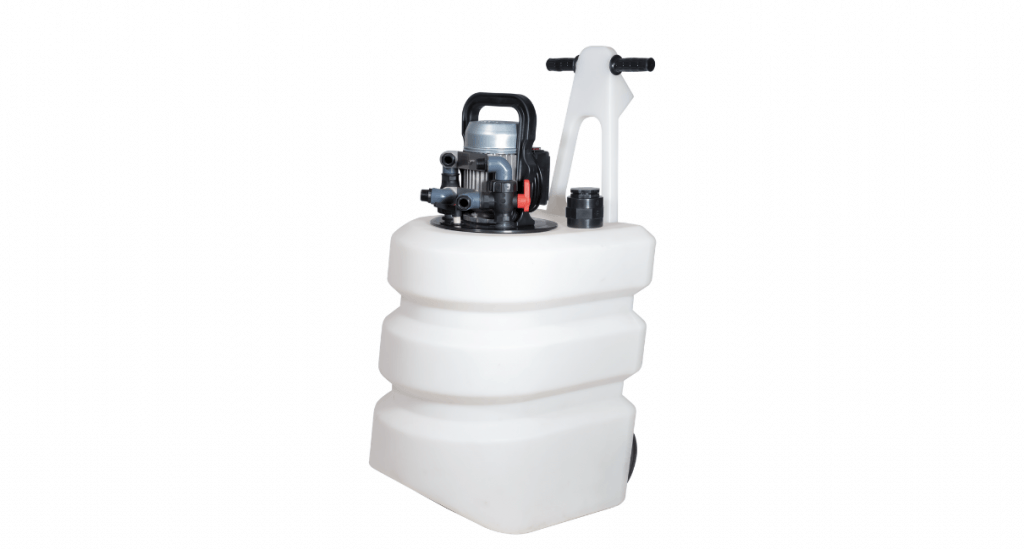

TRANSFORMER COMBI HF 75

The Transformer Combi HF 75 is a  power flushing pump, suitable for domestic and medium sized systems. It is a high performance pump, with an acid resistant motor and a 75 litres tank. Its exclusive design makes it easy to handle.

This pump is ideal for systems up to 15/20 radiators maximum 3 floors.

Transformer-Combi-HF-75

Technical features:
TANK: 75 L
MAX FLOW RATE: 52 L/min
PRESSURE: 1,6 bar / 16 m
MOTOR: 230 VAC / 50 Hz / 0,373 kW
WEIGHT: 30 kg
MAX TEMPERATURE: 70°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1020mm L: 460mm D: 550mm

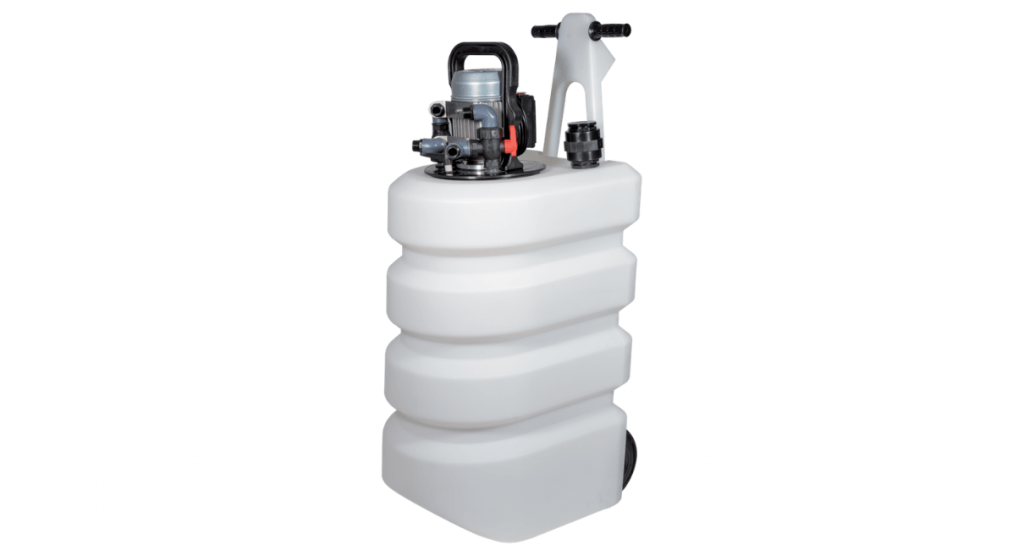

TRANSFORMER COMBI HF 110

On the contrary, if you are looking for something with a larger tank, choose the Transformer Combi HF 110. It has the same features as the Transformer Combi HF 75, but it is equipped with a larger tank (110 litres). Even in this case, the pump guarantees high performance and it is suitable for use with acid descaling liquids.

This pump is ideal for systems up to 15/20 radiators maximum 3 floors.

Transformer-Combi-HF-110

Technical features:
TANK: 110 L
MAX FLOW RATE: 52 L/min
PRESSURE: 1,6 bar / 16 m
MOTOR: 230 VAC / 50 Hz / 0,373 kW
WEIGHT: 32 kg
MAX TEMPERATURE: 70°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1080mm L: 460mm D: 550mm

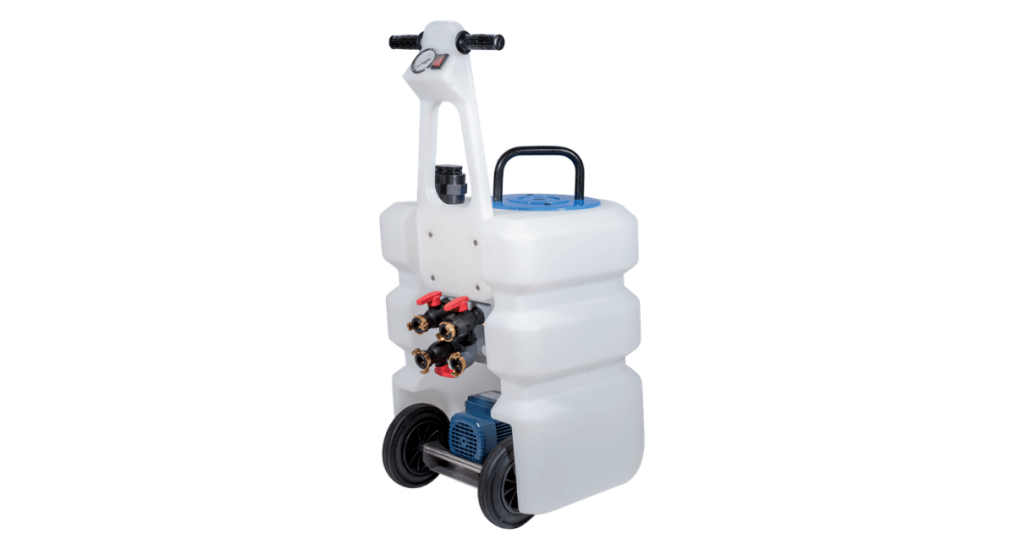

TRANSFORMER PF 55 or TRANSFORMER PF 85

Do you have to restore heating systems where a higher flow is required? Transformer PF 55 or Transformer PF 85! If you are looking to a highly performing pump to clean traditional heating systems with up to 40-60 radiators (max 6 floors), these pumps are perfect. They are available with a 55 or 85 litres tank and they are very handy.

Transformer-Combi-PHF-55-PF-55

Technical features:
PF 55
TANK: 55 L
MAX FLOW RATE: 300 L/min
PRESSURE: 1,9 bar
MOTOR: 230 VAC / 50 Hz / 0,75 kW
WEIGHT: 19 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1020mm L: 460mm D: 550mm

Technical features:
PF 85
TANK: 85 L
MAX FLOW RATE: 300 L/min
PRESSURE: 1,9 bar / 19 m
MOTOR: 230 VAC / 50 Hz / 0,75 kW
WEIGHT: 21 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1020mm L: 460mm D: 550mm

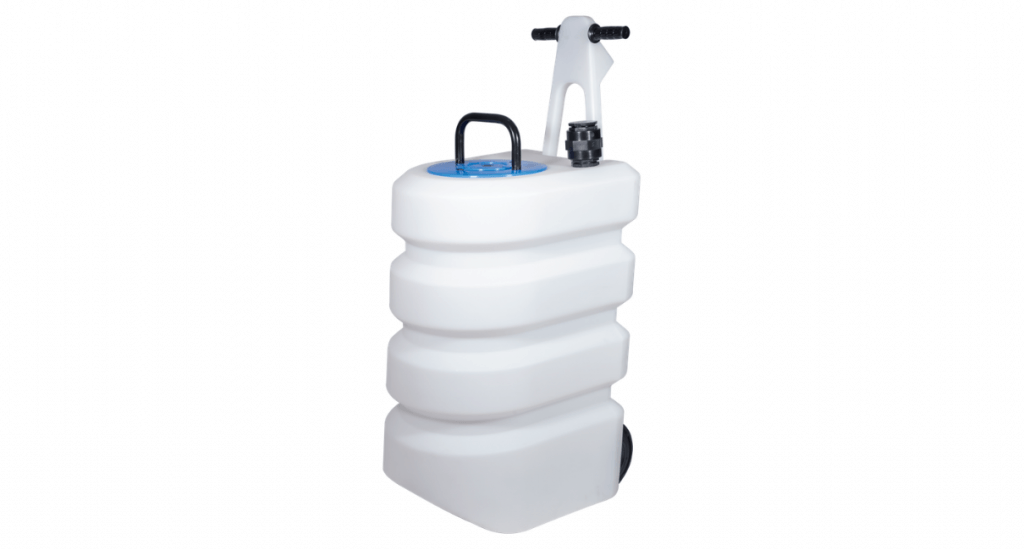

TRANSFORMER PFH 55 or TRANSFORMER PFH 85

Do you have to restore heating systems where a higher pressure rate is required? Transformer PFH 55 or Transformer PFH 85! These pumps are perfect for cleaning underfloor systems, thanks to their high pressure they can clean the most clogged systems. They are available with a 55 or 85 litres tank and they are very handy.

Transformer-Combi-PHF-85-PF-85

Technical features:
PFH 55
TANK: 55 L
MAX FLOW RATE: 50 L/min
PRESSURE: 4,2 bar
MOTOR: 230 VAC / 50 Hz / 0,6 kW
WEIGHT: 19 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1020mm L: 460mm D: 550mm

Technical features:
PFH 85
TANK: 85 L
MAX FLOW RATE: 50 L/min
PRESSURE: 4,2 bar / 42 m
MOTOR: 230 VAC / 50 Hz / 0,6 kW
WEIGHT: 21 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1020mm L: 460mm D: 550mm

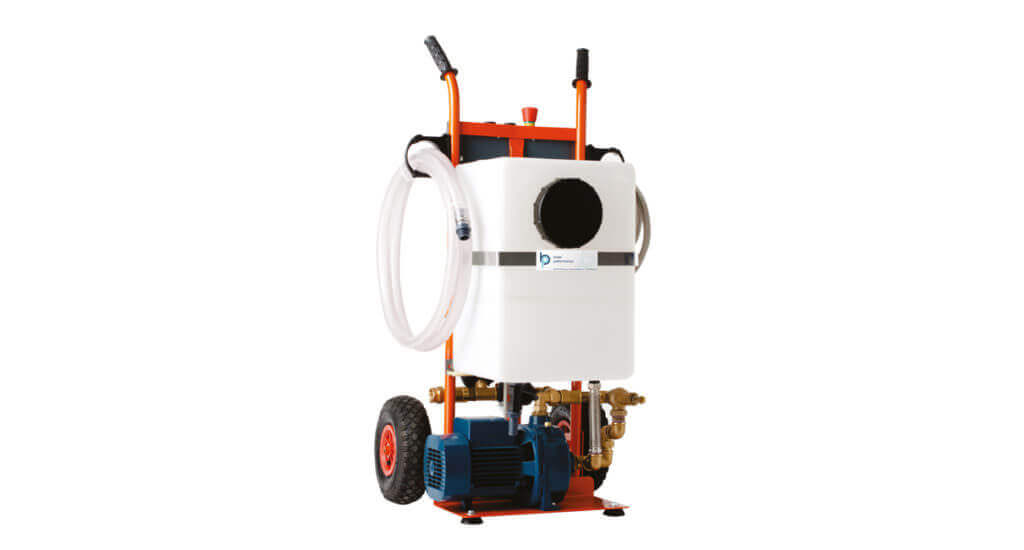

PULISCI PROVA IMPIANTI MEDIA

Pump for specifically removing impurities; suitable for being used with water, solar and underfloor systems and for cooling circuits of a medium size. Suitable for buildings, offices, etc. With integrated safety features.

pulisci-prova-impianti

Technical features:
TANK: 18 L
FLOW RATE: 90 L/min
PRESSURE: 4,0 bar / 40 m
MOTOR: 230 VAC / 50 Hz / 0,75 kW
WEIGHT: 37 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 3/4″ F
DIMENSIONS: H: 1070mm L: 520mm D: 550mm

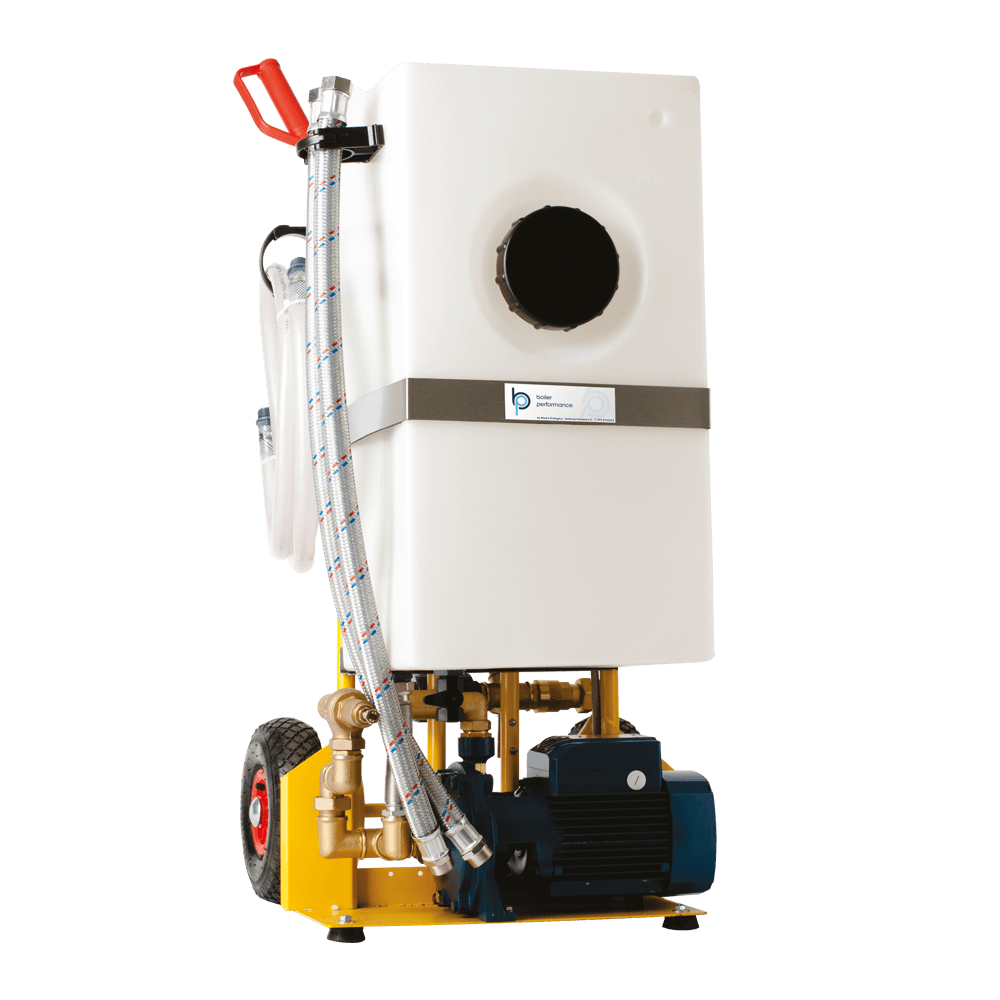

PULISCI GRANDI IMPIANTI

Pump for specifically removing impurities; suitable for being used with water, solar, underfloor systems and for cooling circuits of a large size. With integrated safety features.

Pulisci_grandi_Impianti

Technical features:
TANK: 40 L
FLOW RATE: 100 L/min
PRESSURE: 5,3 bar / 53 m
MOTOR: 230 VAC / 50 Hz / 1,1 kW
WEIGHT: 60 kg
MAX TEMPERATURE: 40°C
CONNECTIONS: 1″ F
DIMENSIONS: H: 1070mm L: 580mm D: 620mm

Notice!
All of our pumps comply with
EN 60335-2-41:2003 and EN 60335-1:2012.

The electrical box is fireproof.

The thermal switch allows an automatic stop before a critical temperature is reached.

Would you like more information about our pumps? Contact us, we will be happy to help you!
